Passenger-Side Lower Panel Adjustment

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION )
  2. Loosen bolts A.
    • If the passenger-side lower panel moves in the lateral direction when bolts A are loosened, go to the step 3 and  4.
    • If the passenger-side lower panel does not move in the lateral direction when bolts A are loosened, go to the step  5.

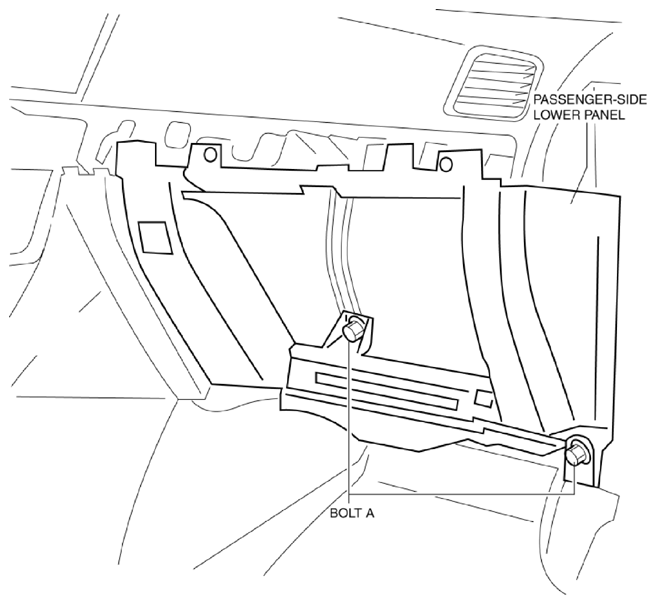

    Fig 1: Identifying Passenger-Side Lower Panel Bolts
    G10939037Courtesy of MAZDA MOTORS CORP.
  3. Remove bolts A.
  4. Install bolts A in the order of (1), (2) shown in the figure.

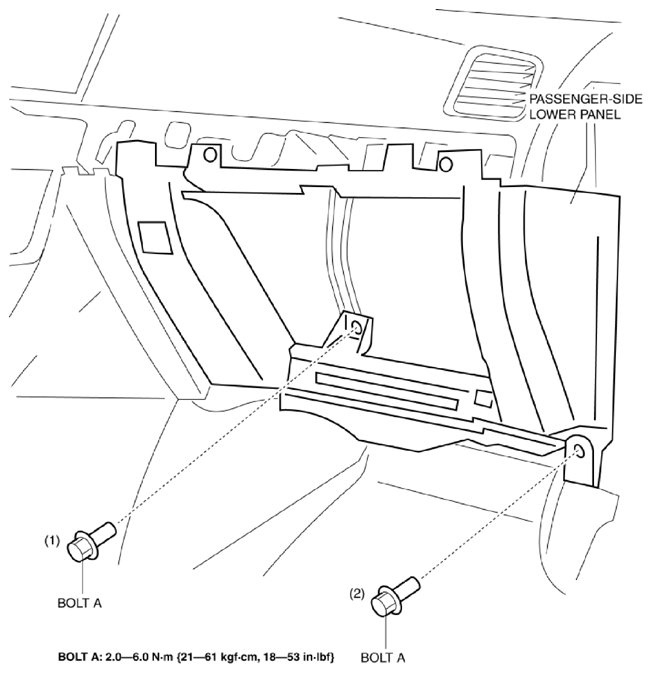

    Fig 2: Installing Passenger-Side Lower Panel Bolts
    G10939038Courtesy of MAZDA MOTORS CORP.
  5. Install bolts A in the order of (1) and (2) while pressing the shaded area shown in the figure for the passenger-side lower panel.

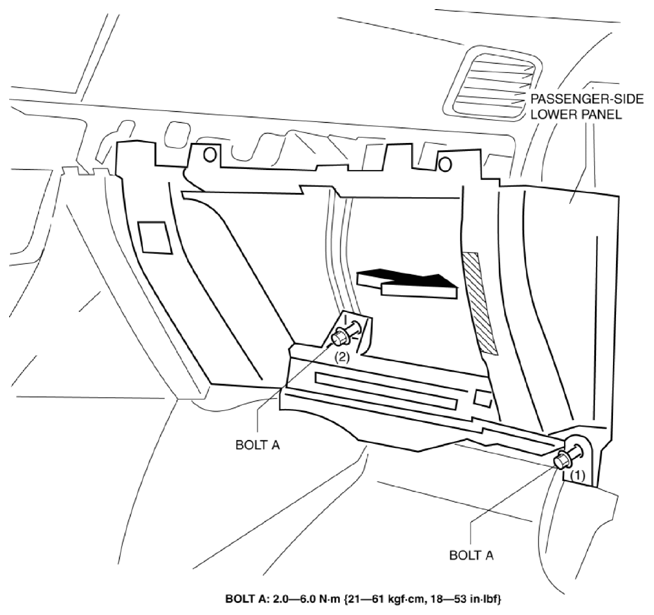

    Fig 3: Installing Passenger-Side Lower Panel Bolts
    G10939039Courtesy of MAZDA MOTORS CORP.
  6. Install the glove compartment, measure the clearance between the glove compartment and passenger-side lower panel again, and verify that it is within the specification.
