Front Door Trim Disassembly/Assembly: Passenger-Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order shown in the figure.

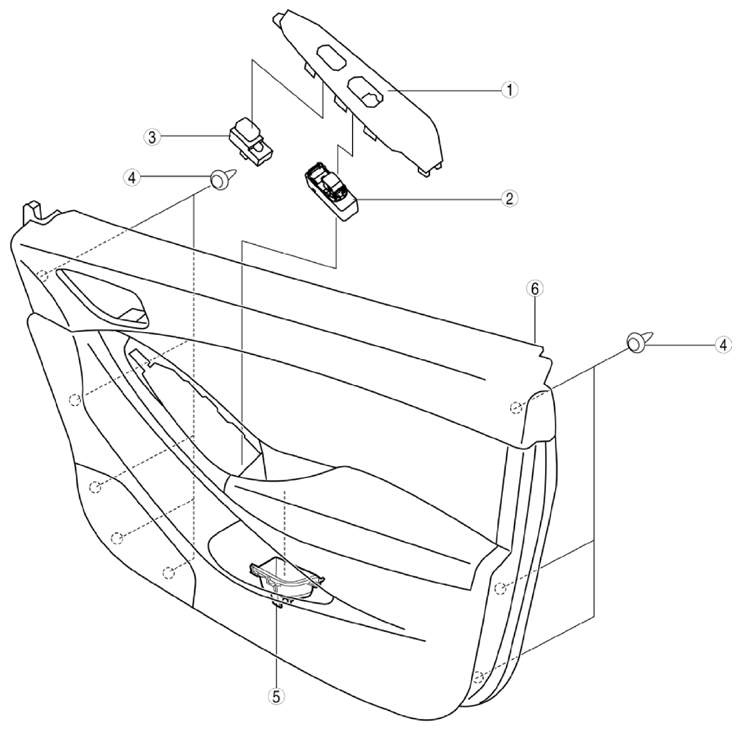

Fig 1: Front Door Trim Components (Passenger-Side)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Switch panel cover
2	Power subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
3	Door lock switch (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
4	Fastener
5	Pocket
6	Front door trim

Assemble in the reverse order of disassembly.
