Floor Covering Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When installing the floor covering, the floor covering may press the A/C unit drain hose and deform it. When installing the floor covering, align the floor covering to the body to prevent deforming the A/C unit drain hose.

Place the floor covering with it aligned to the body.
Before installing the side wall, verify that the A/C unit drain hose is not deformed.

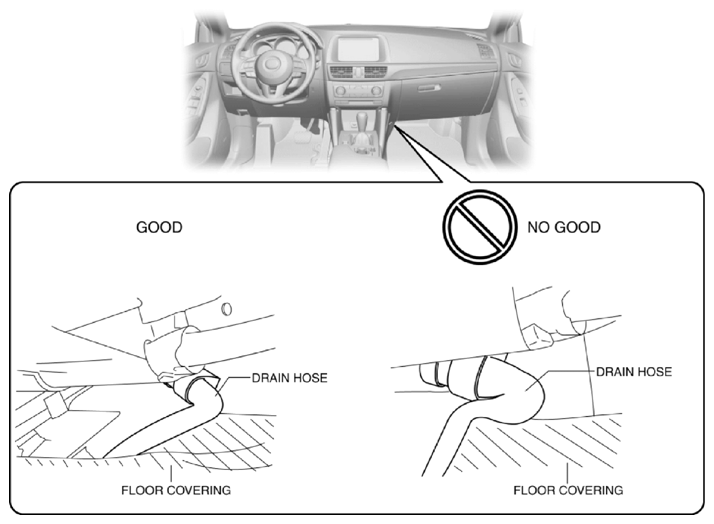

Fig 1: Caution For Aligning Floor Covering To Body

Courtesy of MAZDA MOTORS CORP.
