Clearance Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap between the ABS sensor rotor and ABS wheel-speed sensor using a feeler gauge.

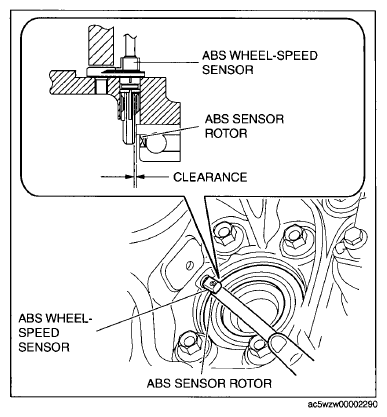

Fig 1: Measuring Gap Between ABS Sensor Rotor And ABS Wheel-Speed Sensor Using Feeler Gauge
Courtesy of MAZDA MOTORS CORP.
- If not within the specification, verify the following items and repair or replace if necessary.
  - Is there deformation or damage to the ABS sensor rotor?
  - Is there deformation or damage to the ABS wheel speed sensor?
  - Is there foreign matter adhering?
Clearance

088-1.52 mm {0.035-0.059 in}
