LED Illumination Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
  2. Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.

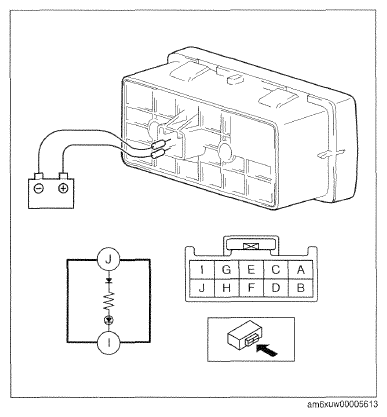

    Fig 1: Connecting Battery Positive Voltage To Cluster Switch Terminal J
    G09785880Courtesy of MAZDA MOTORS CORP.
  3. Verily that the LED illuminates.
    • If there is any malfunction, replace the cluster switch.
