Transaxle mounting bolt removal note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.

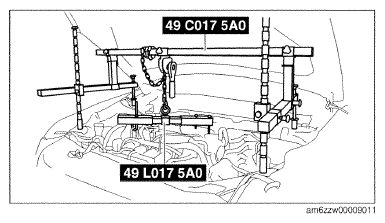

  1. Adjust the SST and lean the engine toward the transaxle.
    Fig 1: Adjusting SST And Lean Engine Toward Transaxle
    G09786134Courtesy of MAZDA MOTORS CORP.
  2. Support the transaxle on a jack.
    Fig 2: Supporting Transaxle On Jack
    G09075467Courtesy of MAZDA MOTORS CORP.
  3. Remove the transaxle mounting bolts (lower side).
  4. Remove the transaxle.
