Automatic Transaxle Location Index

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

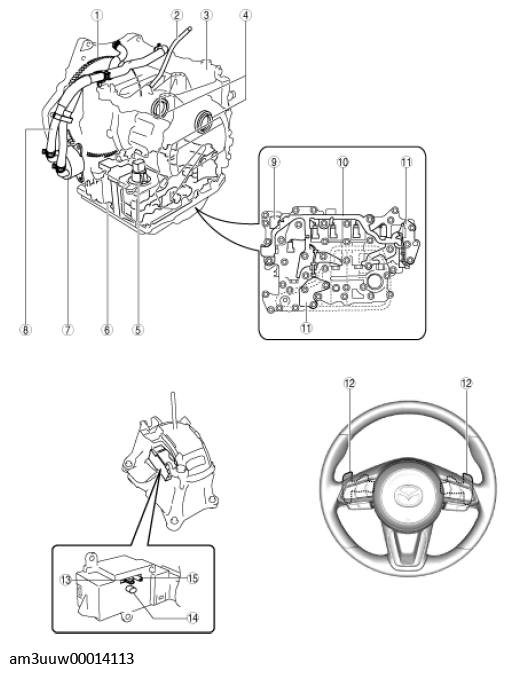

Fig 1: Automatic Transaxle Components Location

G11542498

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION .)
2	Breather hose (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
3	Automatic transaxle (See MECHANICAL SYSTEM TEST .) (See ROAD TEST .) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT .) (See INITIAL LEARNING .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
4	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT .)
5	Oil seal (control valve body) (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT .)
6	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION .) (See TCM CONFIGURATION .)
7	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION .)
8	Water hose (See OIL COOLER REMOVAL/INSTALLATION .)
9	ON/OFF solenoid (See ON/OFF SOLENOID REMOVAL/INSTALLATION .)
10	Coupler component (See COUPLER COMPONENT REMOVAL/INSTALLATION .)
11	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .)
12	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION .) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION .)
13	Up switch (See UP SWITCH INSPECTION .) (See UP SWITCH REMOVAL/INSTALLATION .)
14	M position switch (See M POSITION SWITCH INSPECTION .) (See M POSITION SWITCH REMOVAL/INSTALLATION .)
15	Down switch (See DOWN SWITCH INSPECTION .) (See DOWN SWITCH REMOVAL/INSTALLATION .)
