Outer Ring Disassembly Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Place alignment marks on the shaft and outer ring.
CAUTION:
- To prevent part damage, do not use a punch or similar tool to place alignment marks. Use paint.
Fig 1: Placing Alignment Marks On Shaft And Outer Ring
Courtesy of MAZDA MOTORS CORP.
Secure the shaft in a vise.

Fig 2: Securing Shaft In Vise
Courtesy of MAZDA MOTORS CORP.
Lightly tap the outer ring evenly using a hammer and urethane bar or equivalent, and remove the outer ring from the shaft.
CAUTION:
- When tapping the outer ring lightly using a hammer and urethane bar or equivalent, be careful not to scratch the roller area so as to prevent damage to the part.

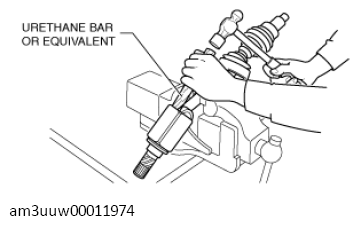

Fig 3: Tapping Outer Ring Lightly Using Hammer And Urethane Bar
Courtesy of MAZDA MOTORS CORP.
Wipe off grease on the outer ring using a clean rag.
