Boot Band (Wheel Side) Assembly Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

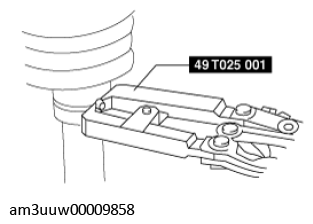

Adjust opening A of the SST to the standard by rotating the adjustment bolt.

Fig 1: Boot Band (Wheel Side) Assembly Adjustment Dimension

Courtesy of MAZDA MOTORS CORP.

Standard A

Engine type	Clearance
SKYACTIV-G 2.0	Approx. 4.6 mm {0.18 in}
SKYACTIV-G 2.5	Large diameter side: Approx. 3.8 mm {0.15 in} Small diameter side: Approx. 3.1 mm {0.12 in}

Crimp the boot band using the SST.
Large diameter side

Fig 2: Installing Boot Band Using SST (Large Diameter Side)
Courtesy of MAZDA MOTORS CORP.

Small diameter side

Fig 3: Installing Boot Band Using SST (Small Diameter Side)
Courtesy of MAZDA MOTORS CORP.

Verify that crimp B of the boot band is within the standard.

Fig 4: Crimp B Of Boot Band

Courtesy of MAZDA MOTORS CORP.

Standard B

Engine type	Clearance
SKYACTIV-G 2.0	1.2-4.0 mm {0.05-0.15 in}
SKYACTIV-G 2.5	Large diameter side: 1.8 mm {0.071 in} or less Small diameter side: 1.5 mm {0.059 in} or less

If crimp B exceeds the standard, decrease opening A of the SST and crimp the boot band again.

Verify that the boot band does not protrude from the band assembly area.

If the boot band protrudes from the assembly area, replace it with a new one and repeat Steps 1 to 3.
