Rear Door Glass Run Channel Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear door glass run channel so that the glass guide is aligned with the top of the rear door glass run channel.

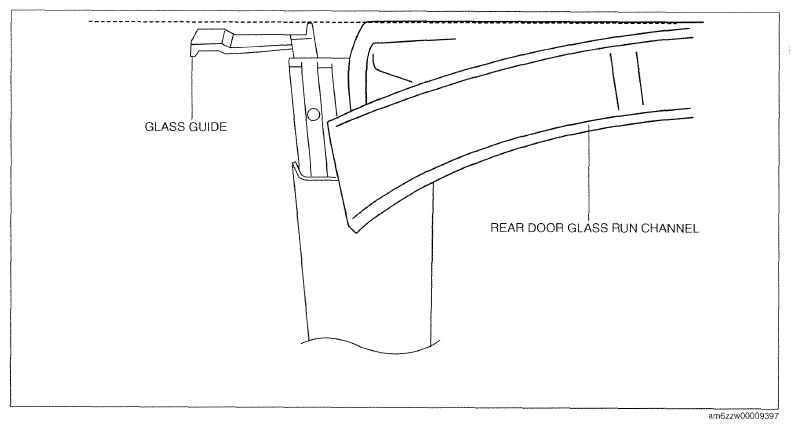

Fig 1: Installing Rear Door Glass Run Channel
Courtesy of MAZDA MOTORS CORP.
Install the rear door glass run channel to the rear door panel by pressing the rear door glass run channel along the entire perimeter in the direction of the arrows.

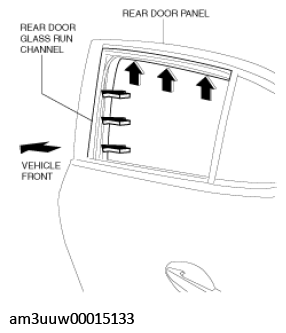

Fig 2: Installing Rear Door Glass Run Channel

Courtesy of MAZDA MOTORS CORP.
