VIN: JM1**

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

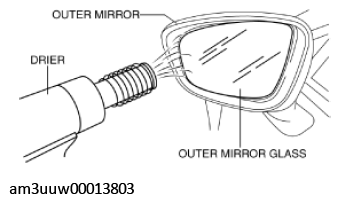

Fig 1: Warming Back Of Glass

Courtesy of MAZDA MOTORS CORP.

NOTE:

Removal of the outer mirror glass can be facilitated by warming the back of the glass to approx.50°C {90°F} to 60° {108°F}degrees using a drier.
Be careful not to overheat the outer mirror, as temperatures higher than60°C {108°F} degrees could deform it.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
To facilitate removal of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

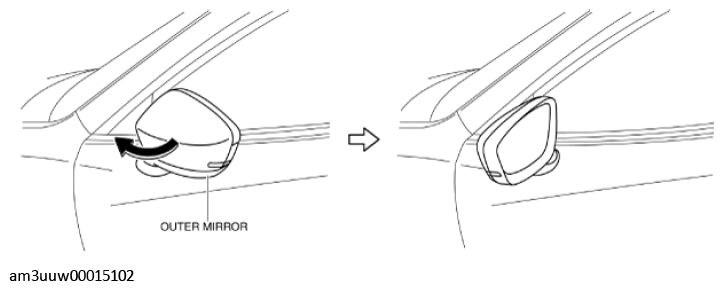

Fig 2: Outer Mirror Orientation
Courtesy of MAZDA MOTORS CORP.
Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Fig 3: Affixing Protective Tape (Prevent Scratches And Damage)
Courtesy of MAZDA MOTORS CORP.
Move the outer mirror glass in the direction of the arrows shown in the figure to secure a space for inserting your fingers.

Fig 4: Moving Outer Mirror Glass (Given Direction)
Courtesy of MAZDA MOTORS CORP.
Insert your fingers into the location shown in the figure, move the outer mirror glass in the direction of the arrow, and using the projection as the fulcrum point, disengage the pin A.
CAUTION:
- When moving the outer mirror glass, if only the mirror glass is moved, the mirror glass could separate from the outer mirror glass holder. Move the outer mirror glass holder together with the mirror glass when moving the outer mirror glass.

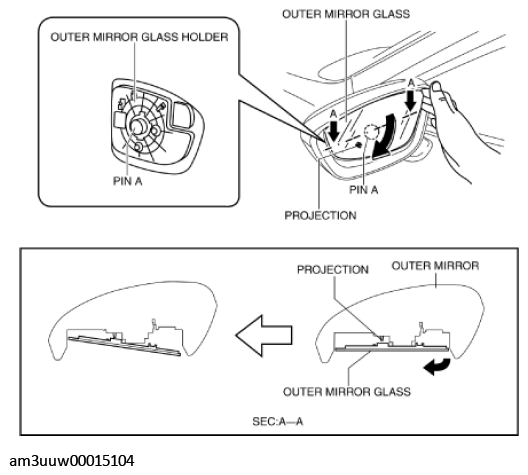

Fig 5: Removing Pin A
Courtesy of MAZDA MOTORS CORP.
Insert your fingers behind the glass in the same manner as Step 4 and disengage the remaining pins B and C.

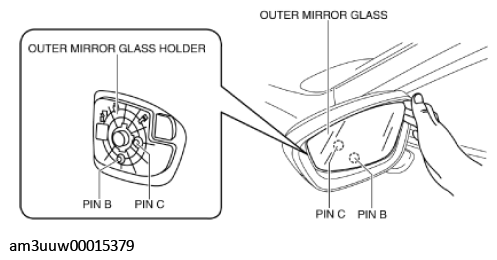

Fig 6: Removing Pins B And C
Courtesy of MAZDA MOTORS CORP.
Remove the wiring harness for the hooks.

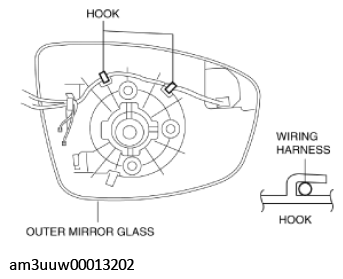

Fig 7: Removing Wiring Harness
Courtesy of MAZDA MOTORS CORP.
Disconnect the mirror heater connectors. (with heated outer mirror)

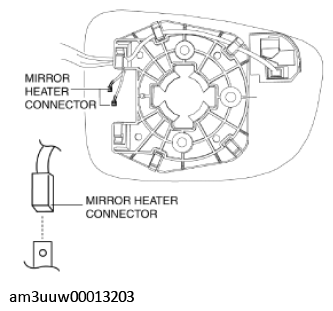

Fig 8: Detaching Mirror Heater Connectors
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver to the position shown in the figure, remove the BSM indicator light connector (with blind spot monitoring system).
CAUTION:
- The connector can be easily deformed, therefore do not apply excessive force.

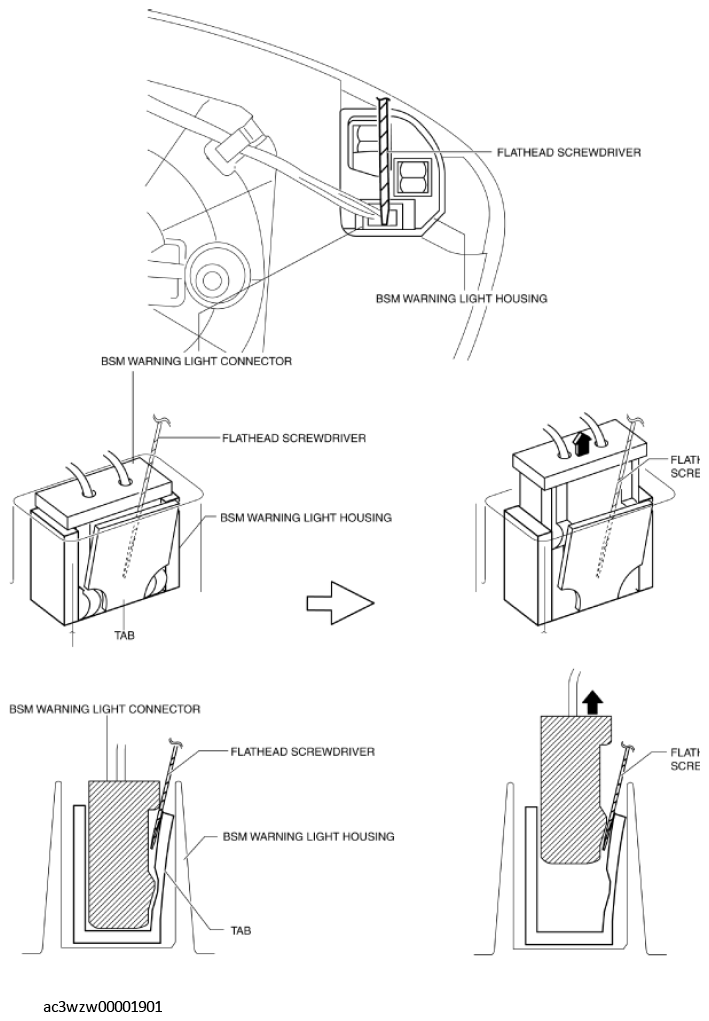

Fig 9: Remove Bsm Indicator Light Connector (With Blind Spot Monitoring System)
Courtesy of MAZDA MOTORS CORP.
Remove the mirror glass holder and the outer mirror glass as a single unit.
