Advanced Smart City Brake Support (Advanced SCBS) Location Index

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

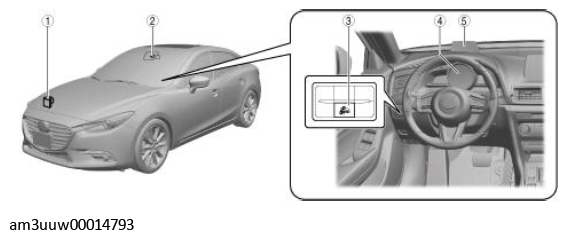

Fig 1: Advanced Smart City Brake Support (Advanced SCBS) Parts Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION .) (See DSC HU/CM INSPECTION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .)
2	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) AIMING .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA) .) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD .)
3	Smart city brake support (SCBS) OFF switch (without center display) (See SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH REMOVAL/INSTALLATION .) (See SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH INSPECTION .)
4	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) (See INSTRUMENT CLUSTER OPERATION RECORD .) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE .)
5	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
