Cable Outer End (Transaxle Side) Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the cable outer end (transaxle side) to the bracket so that the marking is in the area of the arrow shown in the figure.

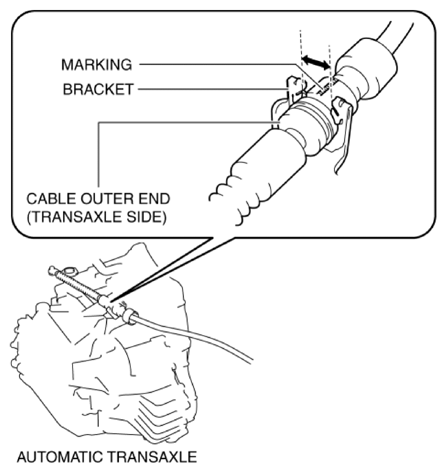

Fig 1: Assembling Cable Outer End (Transaxle Side) To Bracket

Courtesy of MAZDA MOTORS CORP.
