Dynamic Stability Control System Wiring Diagram Dynamic Stability Control (DSC)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

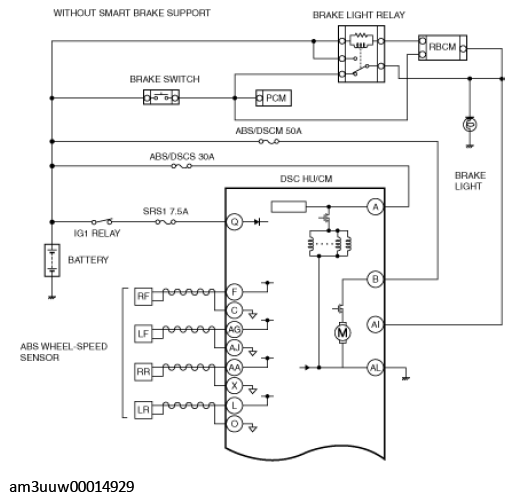

Fig 1: Dynamic Stability Control System Wiring Diagram (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

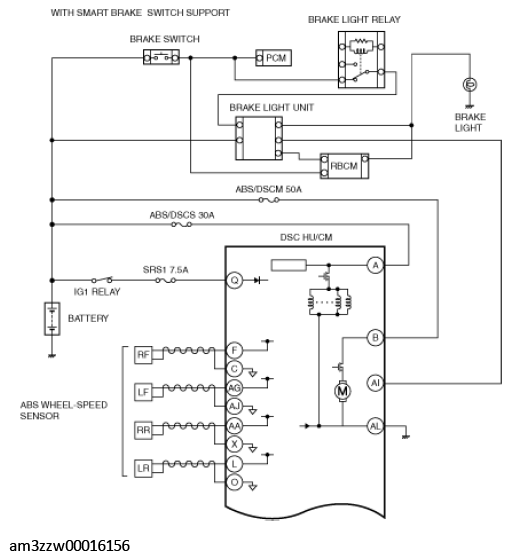

Fig 2: Dynamic Stability Control System Wiring Diagram (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

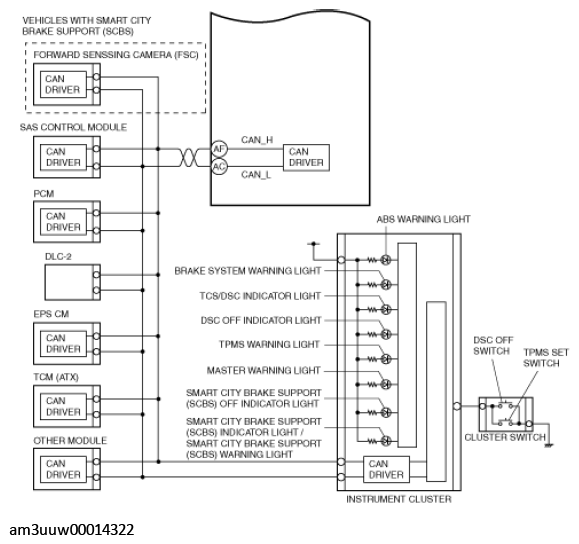

Fig 3: Dynamic Stability Control System Wiring Diagram (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
