DTC C1109-64; DSC Off Switch: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC |
C1109:64 |
DSC OFF switch |
| DETECTION CONDITION |
- Continuous ON signal from the DSC OFF switch for 10 s or more is detected.
|
| FAIL-SAFE FUNCTION |
- Permits the control and does not illuminate each warning/indicator light.
|
| POSSIBLE CAUSE |
- The driver pressed and held the DSC OFF switch for 10 s or more.

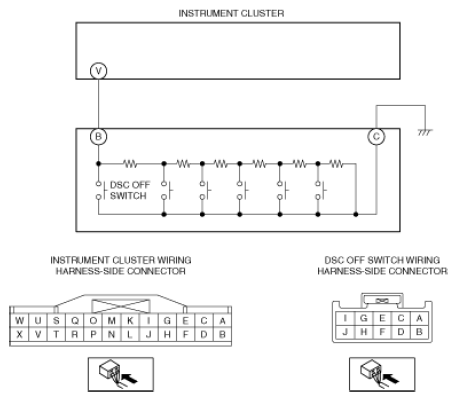

- Short to ground in the wiring harness between the instrument cluster terminal V and DSC OFF switch terminal B
- Open circuit in wiring harness between DSC OFF switch termin al C and body ground
- DSC OFF switch malfunction
- Poor connection at connectors (female terminal)
|
|
|
