Front Wiring Harness Protector No. 2

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  3. While pressing the clip tabs of front wiring harness protector No. 2 in the direction of the arrows (1) shown in the figure, pull the clip of front wiring harness protector No. 2 in the direction of the arrow (2) shown in the figure to detach the clip tabs of front wiring harness protector No. 2 from the engine mount.

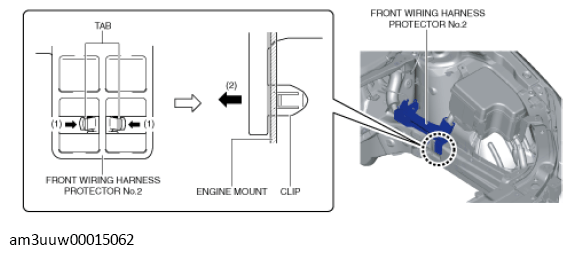

    Fig 1: Pressing Clip Tabs Of Front Wiring Harness Protector
    G11467403Courtesy of MAZDA MOTORS CORP.
  4. Pull out the clip.
  5. Lift up the cap of front wiring harness protector No. 2 in the direction of the arrow shown in the figure.

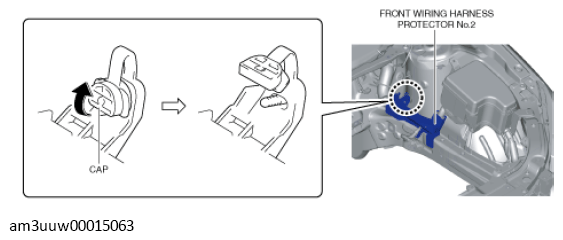

    Fig 2: Lifting Up Cap Of Front Wiring Harness Protector
    G11467404Courtesy of MAZDA MOTORS CORP.
  6. Pull out the front wiring harness protector No. 2 from the stud bolt and set it aside as shown in the figure.
    Fig 3: Pulling Out Front Wiring Harness Protector
    G09788506Courtesy of MAZDA MOTORS CORP.
  7. While pressing the clip tabs in the direction of the arrows (1) shown in the figure, push out the clip in the direction of the arrow (2) shown in the figure to detach the clip tabs from the front wiring harness protector No. 2.

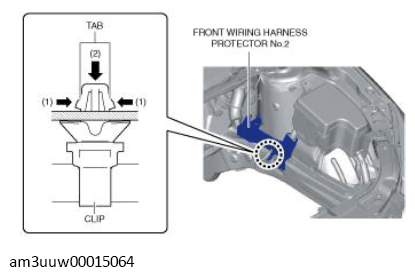

    Fig 4: Detaching Clip Tabs From Front Wiring Harness Protector
    G11467406Courtesy of MAZDA MOTORS CORP.
  8. Pull out the clip.
  9. Insert the remover tool into the front wiring harness protector No. 2 tabs in the positions shown in the figure.

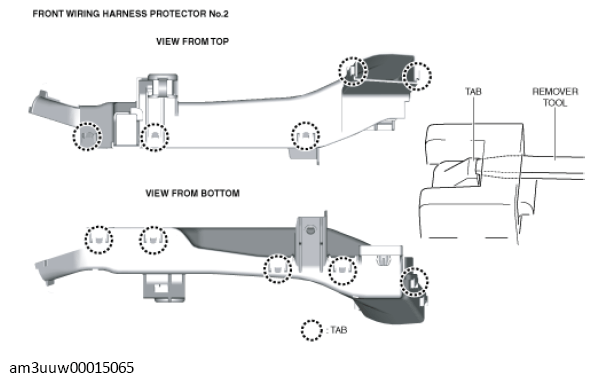

    Fig 5: Front Wiring Harness Protector Tabs Locations
    G11467407Courtesy of MAZDA MOTORS CORP.
  10. While lifting up the hook in the direction of the arrow (1) shown in the figure using a remover tool, pull the hook in the direction of the arrows (2) shown in the figure to detach the tab from the hook.
    Fig 6: Detaching Tab From Hook
    G11467408Courtesy of MAZDA MOTORS CORP.
  11. Detach all the tabs from hooks and remove the front wiring harness protector No. 2.
  12. Install in the reverse order of removal.
