Front Wiring Harness Protector No. 1

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the air cleaner case. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  3. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

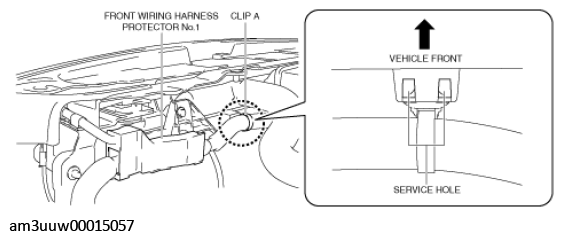

    Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole
    G11467397Courtesy of MAZDA MOTORS CORP.
  4. While pressing the tabs of clip A in the direction of the arrows (1) shown in the figure, pull clip A in the direction of the arrow (2) shown in the figure to detach the tabs of clip A from the radiator.
    Fig 2: Detaching Tabs Of Clip From Radiator
    G09788499Courtesy of MAZDA MOTORS CORP.
  5. Pull out clip A.
  6. While pressing the tabs of clip B in the direction of the arrows (1) shown in the figure, pull clip B in the direction of the arrow (2) shown in the figure to detach the tabs of clip B from the front bumper.

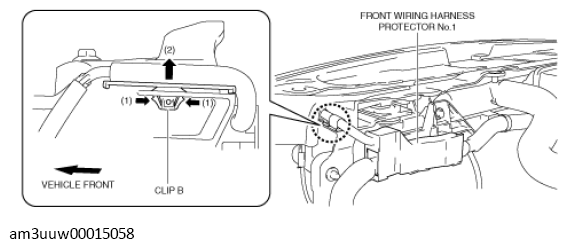

    Fig 3: Detaching Tabs Of Clip From Front Bumper
    G11467399Courtesy of MAZDA MOTORS CORP.
  7. Pull out clip B.
  8. While pressing the clip tabs in the direction of the arrows (1) shown in the figure, pull the front wiring harness protector No. 1 in the direction of the arrow (2) to detach the clip tabs from the radiator.

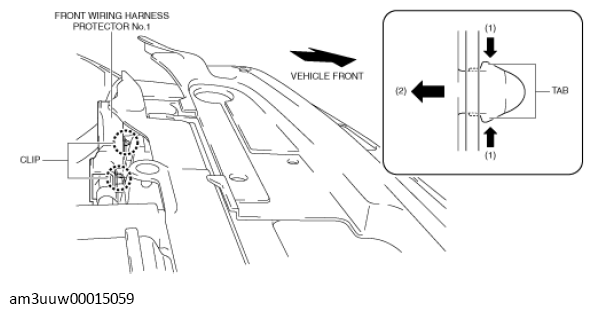

    Fig 4: Detaching Clip Tabs From Radiator
    G11467400Courtesy of MAZDA MOTORS CORP.
  9. Detach all the clip tabs from the radiator and pull out the front wiring harness protector No. 1 from the radiator.
  10. Insert a remover tool into the front wiring harness protector No. 1 tabs in the positions shown in the figure.

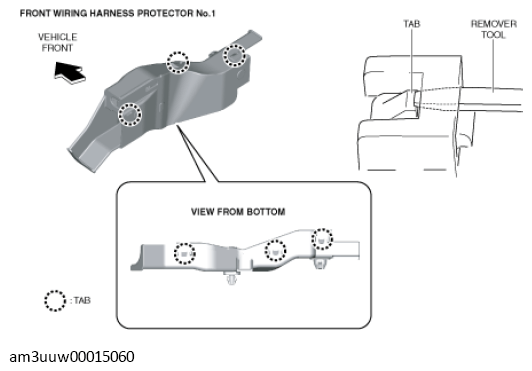

    Fig 5: Inserting Remover Tool Into Front Wiring Harness Protector
    G11467401Courtesy of MAZDA MOTORS CORP.
  11. While lifting up the hook in the direction of the arrow (1) shown in the figure using a remover tool, pull the hook in the direction of the arrows (2) shown in the figure to detach the tab from the hook.
    Fig 6: Detaching Tab From Hook
    G11467402Courtesy of MAZDA MOTORS CORP.
  12. Detach all the tabs from hooks and remove the front wiring harness protector No. 1.
  13. Install in the reverse order of removal.
