Steering Wheel Bezel Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the steering wheel bezel tabs A and B, and the pin to the steering wheel in the order shown in the figure.

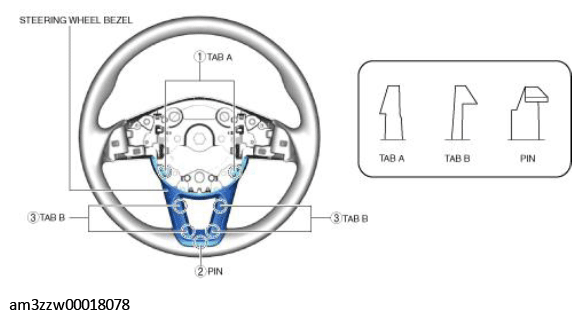

Fig 1: Assembling Steering Wheel Bezel Tabs

Courtesy of MAZDA MOTORS CORP.
