Bracket Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Insert the bracket bolt into the steering column and install the projecting part of the bracket to the installation area of the steering column.

Fig 1: Installing Projecting Part Of Bracket To Installation Area Of Steering Column
Courtesy of MAZDA MOTORS CORP.
Verify that the projection on the steering column is inserted into the hole in the bracket as shown in the figure and tighten the nut to the specified torque.

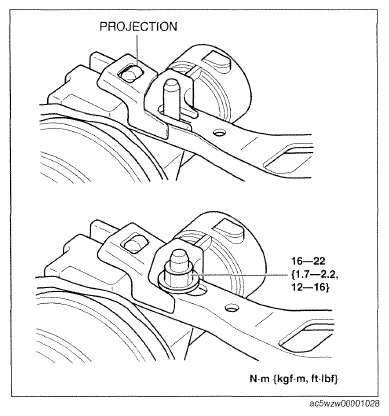

Fig 2: Projection And Bolt With Torque Specification

Courtesy of MAZDA MOTORS CORP.
