Tie Rod Assembly Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

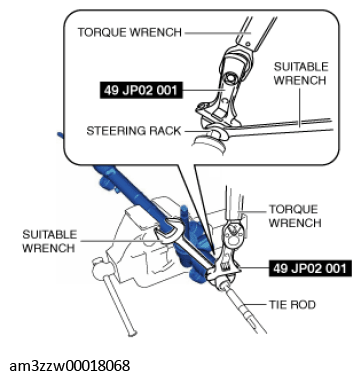

Install the SST to the torque wrench as shown in the figure, set it on the tie rod, and measure dimensions A and L shown in the figure.

Fig 1: Installing SST To Torque Wrench
Courtesy of MAZDA MOTORS CORP.
Tighten the tie rod after calculating the tightening torque using the following formula.

Fig 2: Tightening Tie Rod
Courtesy of MAZDA MOTORS CORP.

Tightening Torque

69-98 N.m {7.1-9.9 kgf.m, 51-72 ft.lbf}

Calculation formula

Tx(L/A) T: Tightening torque (69-98 N.m {7.1-9.9 kgf.m, 51-72 ft.lbf}) L: Torque wrench effective length A: Length from center of tie rod to grip
