DTC P025C: Pcm (SKYACTIV-G 2.0, SKYACTIV-G 2.5): Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DTC P025C: PCM (SKYACTIV-G 2.0, SKYACTIV-G 2.5) - DETECTION CONDITION & POSSIBLE CAUSE
| DTC P025C:00 |
Fuel pump control module result of on-board diagnostic test low input |
| DETECTION CONDITION |
- Result of on-board test cannot be received from fuel pump control module (voltage is too low).
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2) is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- Fuel pump control module connector or terminals malfunction
- PCM connector or terminals malfunction

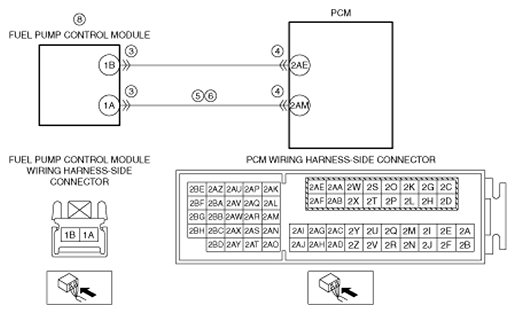

- Short to ground in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AM
- Open circuit in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AM
- Fuel pump relay malfunction
- Fuel pump control module malfunction
- PCM malfunction
|
|
|
