DTC P0223; Pcm TP Sensor No. 2 Circuit High Input: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION & POSSIBLE CAUSE

DTC P0223:00	TP sensor No. 2 circuit high input
DETECTION CONDITION	If the PCM detects that the TP sensor No. 2 voltage at the PCM terminal 1BU is above 4.9 V, the PCM determines that the TP sensor No. 2 circuit has a malfunction. Diagnostic support note This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Restricts the upper limit of the engine speed.

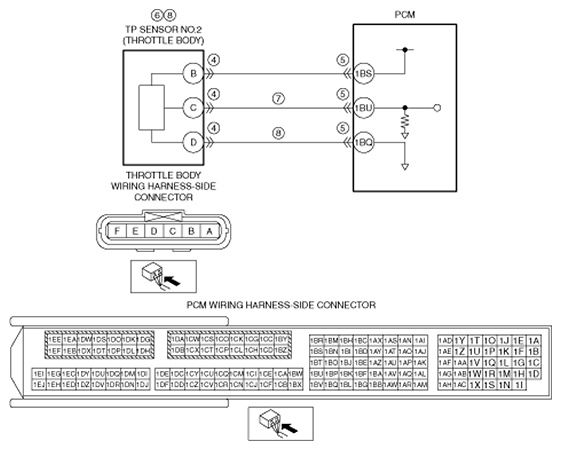

POSSIBLE CAUSE	Throttle body connector or terminals malfunction PCM connector or terminals malfunction TP sensor No. 2 malfunction Short to power supply in wiring harness between throttle body terminal C and PCM terminal 1BU Open circuit in wiring harness between throttle body terminal D and PCM terminal 1BQ PCM malfunction

CAUTION:

Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.

Related PIDs

Item (definition)	Unit/Condition	Definition	Condition/Specification (Reference)
TP2	V	TP sensor No. 2 voltage	Accelerator pedal released: Approx. 3.92 V Accelerator pedal fully depressed: Approx. 0.41 V
TP2	%	Throttle valve position No. 2	Accelerator pedal released: Approx. 22% Accelerator pedal fully depressed: Approx. 82%
