DTC P0103; Pcm (SKYACTIV-G 2.0, SKYACTIV-G 2.5): Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DTC P0103:00 PCM (SKYACTIV-G 2.0, SKYACTIV-G 2.5) - DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0103:00 |
MAF sensor circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAF sensor. If the input voltage at the PCM terminal 2BC is above 4.94 V for 5 s, the PCM determines that the MAF sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Restricts the upper limit of the engine speed.
- Inhibits the evaporative purge control.
|
| POSSIBLE CAUSE |
- MAF sensor/IAT sensor No. 1 connector or terminals malfunction
- PCM connector or terminals malfunction
- MAF sensor malfunction

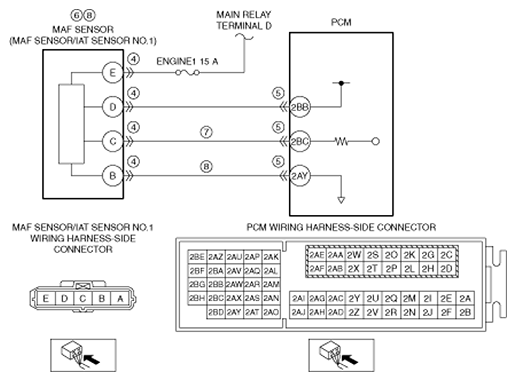

- Short to power supply in wiring harness between MAF sensor/IAT sensor No. 1 terminal C and PCM terminal 2BC
- Open circuit in wiring harness between MAF sensor/IAT sensor No. 1 terminal B and PCM terminal 2AY
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
Related PIDs
| Item (definition) |
Unit/Condition |
Definition |
Condition/Specification (Reference) |
| MAF |
g/Sec |
Mass air flow |
|
| V |
MAF sensor voltage |
- Ignition switched ON (engine off) (MAF: 0.59 g/s {0.078 lb/min}): Approx. 0.72 V
- Idle (after warm up) (MAF: 2.17 g/s {0.287 lb/min}): Approx. 0.86 V
- Racing (engine speed is 2, 000 rpm) (MAF: 4.73 g/s {0.626 lb/min}): Approx. 1.07 V
|
