DTC P0092; Pcm Fuel Pressure Regulator Control Circuit High Input: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE

DTC P0092:00 Fuel pressure regulator control circuit high input
DETECTION CONDITION
  • When the PCM turns the spill valve control solenoid valve on but the spill valve control solenoid valve circuit voltage is high for 5 s, the PCM determines that the spill valve control solenoid valve control circuit has a malfunction.

    MONITORING CONDITIONS

    • The following conditions are met:
  • Engine speed: 5, 700 rpm or less
    • Battery voltage: 10.5 V or more

    Diagnostic support note

  • This is a continuous monitor (CCM).
  • The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
  • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION
  • Stops high pressure fuel pump control
  • Limits intake air amount
POSSIBLE CAUSE
  • High pressure fuel pump connector or terminals malfunction
  • PCM connector or terminals malfunction
  • Short to power supply in wiring harness between high pressure fuel pump terminal B and PCM terminal 1EF
  • Spill valve control solenoid valve (built-into high pressure fuel pump) malfunction
  • PCM malfunction

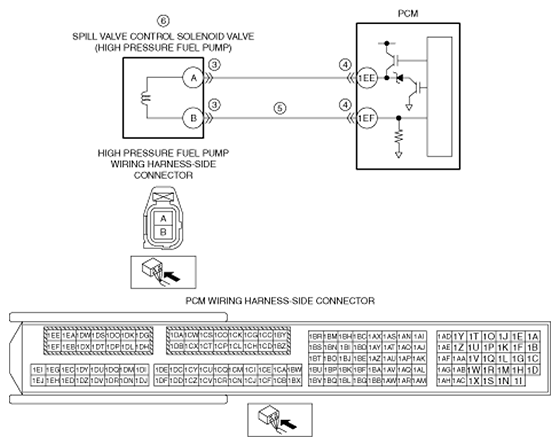

G11550262
CAUTION:
  • Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.

Related PIDs

Item (definition) Unit/Condition Definition Condition/Specification (Reference)
FUEL_PRES KPa {MPA}, mBar {BAR}, psi, in H20 Fuel pressure
  • Displays fuel pressure
V Fuel pressure sensor voltage
  • Fuel pressure is 3.0 MPa {31 kgf/cm2 , 435 psi}: Approx. 0.92 V
  • Fuel pressure is 4.8 MPa {49 kgf/cm2 , 696 psi}: Approx. 1.17 V
LOAD % Ratio of actual amount of intake air to the maximum air charging amount (mass volume) of cylinder
  • Idle (after warm up): Approx. 17.64%
  • Racing (engine speed is 2, 000 rpm): Approx. 14.51%
  • Racing (engine speed is 4, 000 rpm): Approx. 21.17%
RPM RPM Engine speed
  • Displays engine speed
