Function Explanation (DTC Detection Outline)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

P0011:00

With the preconditions met, the PCM verifies the conformity of the actual timing relative to the target valve timing. If it does not conform to the normal determination range (difference between target valve timing and actual valve timing is 15 degrees or less) during the malfunction determination period (approx. 10 s), even if the target valve timing is set to the retard side, the PCM determines an excess advance malfunction condition and stores a DTC.

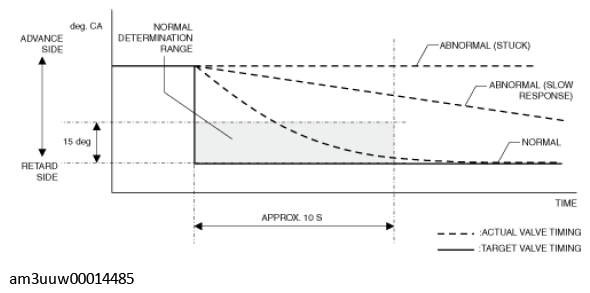

Fig 1: DTC Detection Outline Timing Graph - (P0011:00)

Courtesy of MAZDA MOTORS CORP.

P0012:00

With the preconditions met, the PCM verifies the conformity of the actual timing relative to the target valve timing. If it does not conform to the normal determination range (difference between target valve timing and actual valve timing is 15 degrees or less) during the malfunction determination period (approx. 10 s), even if the target valve timing is set to the advance side, the PCM determines an excess retard malfunction condition and stores a DTC.

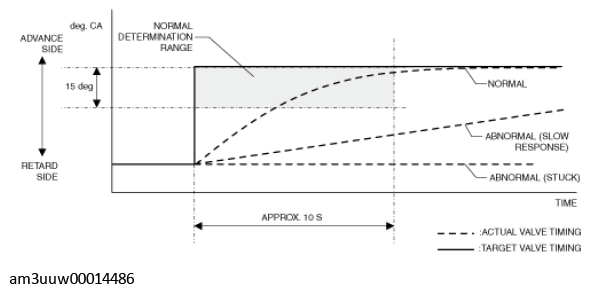

Fig 2: DTC Detection Outline Timing Graph - (P0012:00)

Courtesy of MAZDA MOTORS CORP.
