Dual-Mass Flywheel Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

SKYACTIV-G 2.5

CAUTION:

Do not rework the dual-mass flywheel if it is distorted.
Do not clean the dual-mass flywheel with any kind of fluid. Clean the dual-mass flywheel with a dry cloth only.
Do not clean the gap between the primary and secondary mass. Only clean the bolt connection surface and the clutch surface.

Remove the manual transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .)
Remove the clutch cover and clutch disc. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
Inspect the rotation of the dual-mass flywheel for play.
1. Lock the dual-mass flywheel using the SST (49 E011 1A0).
2. Rotate the secondary flywheel clockwise by hand until resistance can be felt.
3. Mark the guide pin position on the ring gear of the flywheel.
4. Rotate the secondary flywheel counterclockwise by hand until resistance can be felt.
5. Mark the guide pin position on the ring gear of the primary flywheel again.
6. Verify that the play is within the range of 4 teeth.
Fig 1: Marking Guide Pin Position On Ring Gear Of Primary Flywheel
Courtesy of MAZDA MOTORS CORP.
- If the play is 5 teeth or more, replace the dual-mass flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
CAUTION:
- It may not be possible to rotate the secondary flywheel due to the functionality of the dual-mass flywheel. In this case, the dual-mass flywheel can be considered normal by reason of the play being within the range of 4 teeth.
Measure the amount of guide pin projection of the dual-mass flywheel.

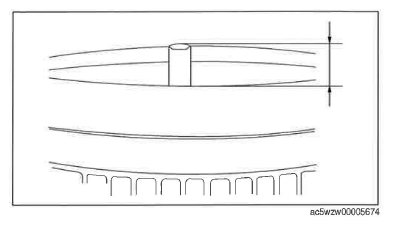

Fig 2: Measuring Amount Of Guide Pin Projection Of Dual-Mass Flywheel
Courtesy of MAZDA MOTORS CORP.
- If it exceeds the maximum amount, replace the dual-mass flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
  Dual-mass flywheel guide pin projection maximum amount

  11.0-12.0 mm {0.434-0.472 in}
Remove the dual-mass flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
Visually inspect the ring gear on the dual-mass flywheel for damage.
- If there is any damage, replace the dual-mass flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
Visually inspect the surface that contacts the clutch disc for scratches, nicks, and discoloration.
- If there is any malfunction, replace the dual-mass flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
NOTE:
- Correct slight scratches and discoloration using sandpaper.

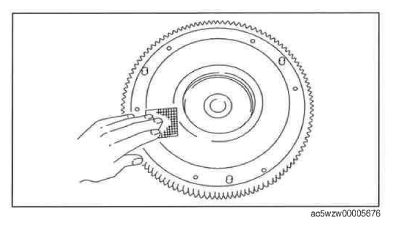

Fig 3: Correcting Slight Scratches And Discoloration Using Sandpaper
Courtesy of MAZDA MOTORS CORP.
Visually inspect for grease leakage between the primary mass and secondary mass.

Fig 4: Checking For Grease Leakage Between Primary Mass And Secondary Mass
Courtesy of MAZDA MOTORS CORP.
- If there is grease leakage, replace the dual-mass flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
