Clutch Fluid Leakage Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not allow clutch fluid to get on a painted surface. Clutch fluid contains properties which can dissolve the paint. If clutch fluid gets on a painted surface, rinse with water immediately, then wipe the area dry.
  1. Verify reserve tank cap is on tight.
  2. Pump the clutch pedal a few times.
  3. Inspect for the clutch fluid leakage at the points indicated in the figure.

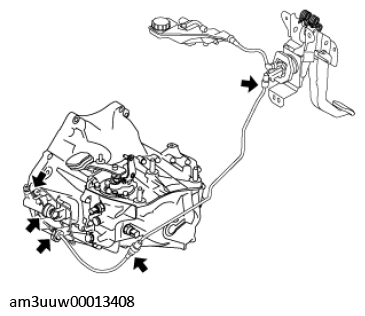

Fig 1: Checking Clutch Fluid Leakage
G11539733Courtesy of MAZDA MOTORS CORP.
NOTE:
  • If there is clutch fluid leakage from the piston in the clutch release cylinder, there is clutch fluid in the boot of clutch release cylinder.
  • If there is clutch fluid leakage, repair or replace the malfunctioning location.
