Evaporative Chamber Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
U.S.A. and CANADA (4SD)

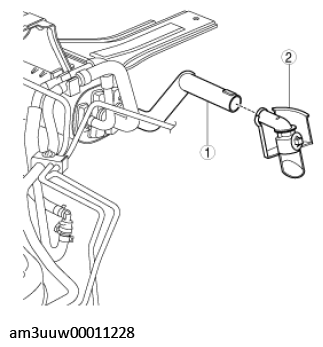

Fig 1: Removing/Installing Evaporative Chamber Parts - U.S.A. And CANADA (4SD)
Courtesy of MAZDA MOTORS CORP.

U.S.A. and CANADA (5HB)

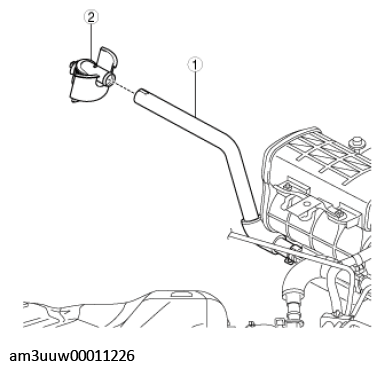

Fig 2: Removing/Installing Evaporative Chamber Parts - U.S.A. And CANADA (5HB)
Courtesy of MAZDA MOTORS CORP.

Except U.S.A. and CANADA

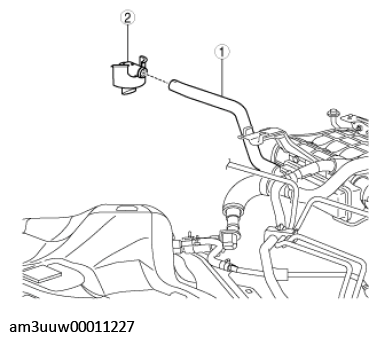

Fig 3: Removing/Installing Evaporative Chamber Parts - Except U.S.A. And Canada
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Evaporative hose

2 Evaporative chamber
Install in the reverse order of removal.

1	Evaporative hose
2	Evaporative chamber
