Emission System Diagram

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

U.S.A. And CANADA

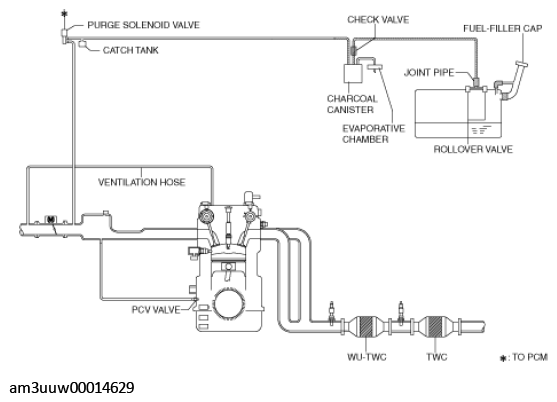

Fig 1: Emission System Circuit Diagram - U.S.A. And CANADA

Courtesy of MAZDA MOTORS CORP.

Except U.S.A. And CANADA

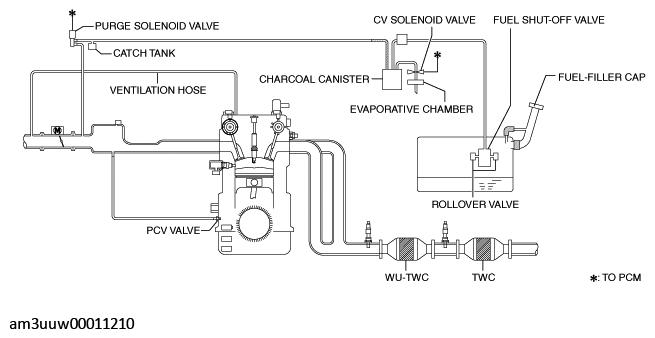

Fig 2: Emission System Circuit Diagram - Except U.S.A. And CANADA

Courtesy of MAZDA MOTORS CORP.
