- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
- Remove the rear crossmember. (See REAR CROSSMEMBER REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

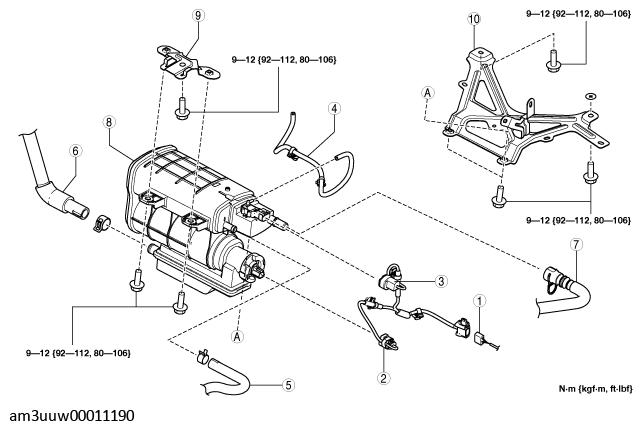

COMPONENT DESCRIPTION
| 1 | Wiring harness connector |
| 2 | CV solenoid valve connector |
| 3 | Fuel tank pressure sensor connector |
| 4 | Evaporative hose No. 1 (See Evaporative hose No. 1 installation note .) |
| 5 | Evaporative hose No. 2 (See Evaporative hose No. 2 installation note .) |
| 6 | Evaporative hose No. 3 (See Evaporative hose No. 3 installation note .) |
| 7 | Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .) |
| 8 | Charcoal canister |
| 9 | Charcoal canister bracket No. 1 |
| 10 | Charcoal canister bracket No. 2 |
