DTC P0930-71; Shift-Lock Solenoid Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Shift-lock solenoid circuit malfunction |
| Detection condition |
- The start stop unit continues to operate the shift-lock solenoid for 30 min or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
- Inhibits the shift lock control.
|
| Possible cause |
- DTCs are stored in the TCM.
- Transmission range switch circuit malfunction
- Brake switch connector or terminal malfunction
- Brake switch (No. 1 signal) malfunction
- Start stop unit connector or terminal malfunction

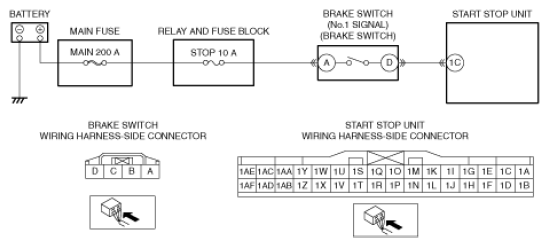

- Short to ground in wiring harness between brake switch terminal D and start stop unit terminal 1C
- Start stop unit malfunction
|
|
|
