DTC P0850-23; Transaxle Range Sensor Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Transaxle range sensor circuit malfunction |
| Detection condition |
- Start stop unit detects that the transaxle range sensor signal is P or N position for 1 s or more continuously for a continuous 5 times or more even though the TCM CAN signal is other than P and N position with the ignition switched ON (engine off or on).
|
| Fail-safe function |
- Perform control of the internal signal for control of the transaxle range sensor as position other than P, N positions.
|
| Possible cause |
- DTCs are stored in the TCM.
- DTCs are stored in the PCM.
- TCM connector or terminal malfunction
- PCM connector or terminal malfunction
- Start stop unit connector or terminal malfunction

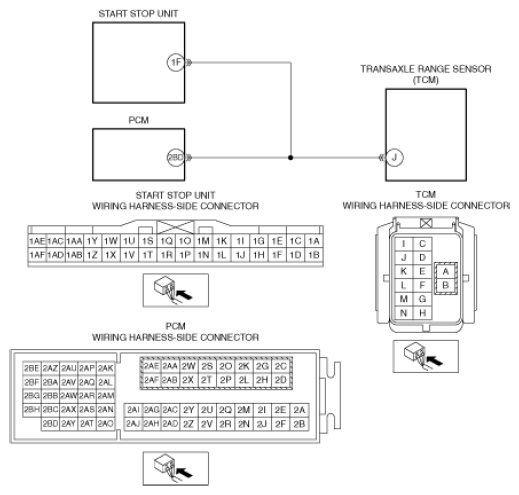

- Short to ground in the wiring harness between the following terminals:
- TCM terminal J-PCM terminal 2BD
- TCM terminal J-Start stop unit terminal 1F
- Open circuit in wiring harness between the following terminals:
- TCM terminal J-PCM terminal 2BD
- TCM terminal J-Start stop unit terminal 1F
- Transaxle range sensor malfunction
- PCM malfunction
- Start stop unit malfunction
|
|
|
