DTC P081C-24; Not P Position Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
NOT P position switch circuit malfunction |
| Detection condition |
- Start stop unit detects that the NOT P position switch is stuck off for 5 s or more for a continuous 5 times with the ignition switched ON (engine off or on).
|
| Fail-safe |
- Perform the NOT P position switch control in a position other than P.
|
| Possible cause |
- Selector lever component connector or terminal malfunction
- Open circuit in wiring harness between selector lever component terminal I and body ground
- NOT P position switch malfunction
- Start stop unit connector or terminal malfunction

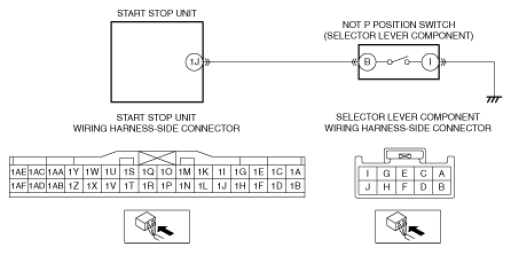

- Open circuit in wiring harness between start stop unit terminal 1J and selector lever component terminal B
- Start stop unit malfunction
|
|
|
