DTC P0616-24; Circuit Malfunction On Downstream Side Of Starter Relay: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION & POSSIBLE CAUSE

Description	Circuit malfunction on downstream side of starter relay
Detection condition	Start stop unit detects an open circuit in the starter relay downstream circuit continuously for 0.5 s or more for a continuous 5 times.
Fail-safe	Not applicable

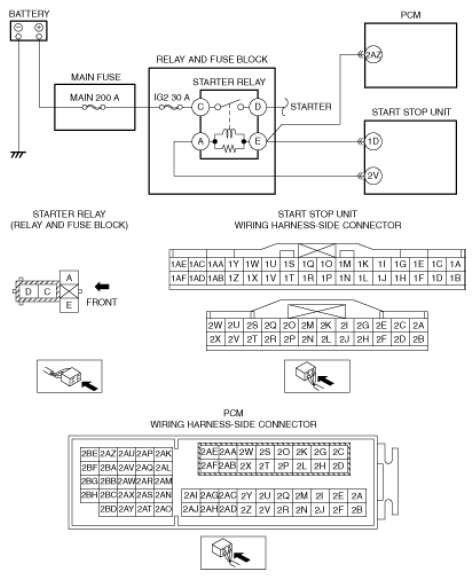

Possible cause	DTCs are stored in the PCM. Starter relay malfunction PCM connector or terminal malfunction Open circuit in wiring harness between the following terminal: Starter relay terminal E and PCM terminal 2AZ PCM malfunction Start stop unit malfunction
