DTC P0615-13; Starter Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Starter relay circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit in the starter relay circuit for 0.075 s or more with the ignition switched off.
|
| Fail-safe |
Not applicable |
| Possible cause |
NOTE:
- If the start stop unit connector is disconnected with the negative battery cable connected, this DTC is output.
- Starter relay malfunction
- Start stop unit connector or terminal malfunction

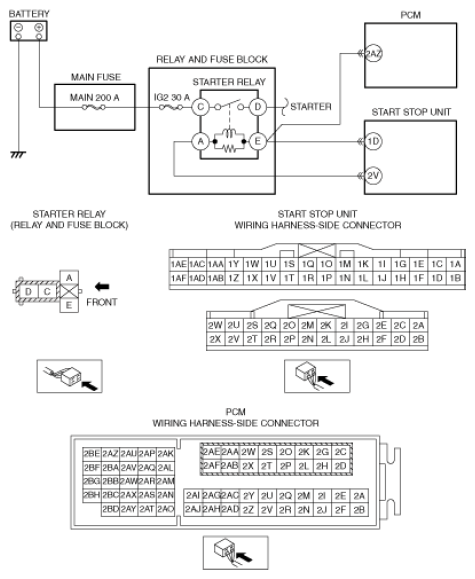

- Open circuit in wiring harness between the following terminals:
- Starter relay terminal E-Start stop unit terminal 1D
- Starter relay terminal A-Start stop unit terminal 2V
- Start stop unit malfunction
|
|
|
