DTC B10D1-23; Request Switch (LF) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Request switch (LF) circuit malfunction |
| Detection condition |
- Start stop unit detected any of the following conditions at a vehicle speed of 5 km/h {3 mph} or more.
- The request switch (LF) is continuously ON for 2 min or more.
- The request switch (LF) was ON 7 times.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Outer handle (LH) connector or terminal malfunction
- LF control unit connector or terminal malfunction

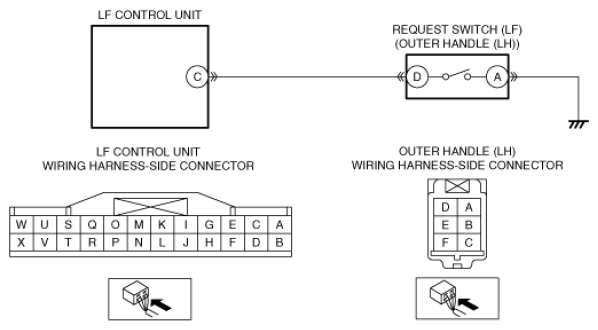

- Short to ground in wiring harness between LF control unit terminal C and outer handle (LH) terminal D
- Request switch (LF) malfunction
- LF control unit malfunction
- Start stop unit malfunction
|
|
|
