DTC B10C6-1F; Keyless Antenna (Exterior, Rear) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Keyless antenna (exterior, rear) circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit or short to ground in the keyless antenna (exterior, rear) circuit with the ignition switched off.
|
| Fail-safe |
- Inhibits the door lock/unlock control using the advanced keyless entry system.
|
| Possible cause |
- Keyless antenna (exterior, rear) connector or terminal malfunction
- LF control unit connector or terminal malfunction

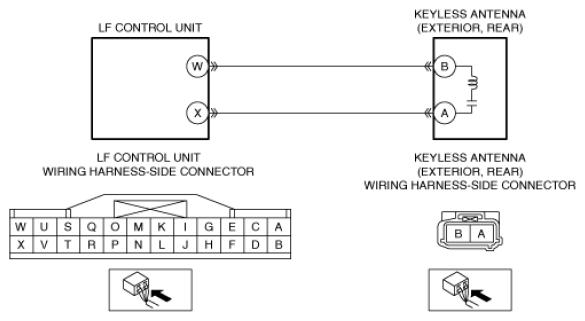

- Short to ground in wiring harness between the following terminals:
- LF control unit terminal W-Keyless antenna (exterior, rear) terminal B
- LF control unit terminal X-Keyless antenna (exterior, rear) terminal A
- Open circuit in wiring harness between the following terminals:
- LF control unit terminal W-Keyless antenna (exterior, rear) terminal B
- LF control unit terminal X-Keyless antenna (exterior, rear) terminal A
- LF control unit malfunction
- Keyless antenna (exterior, rear) malfunction
- Start stop unit malfunction
|
|
|
