DTC B10AC-23; Cruise Control Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Cruise control switch circuit malfunction |
| Detection condition |
- Start stop unit detects any cruise control switch stuck on for 120 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Instrument cluster configuration error
- Clock spring connector or terminal malfunction
- Clock spring malfunction
- Start stop unit connector or terminal malfunction

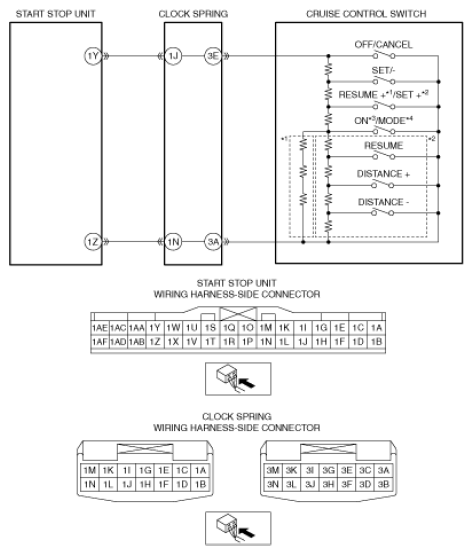

- Short to ground in wiring harness between start stop unit terminal 1Y and clock spring terminal 1J
- Short to power supply in wiring harness between start stop unit terminal 1Y and clock spring terminal 1J
- Cruise control switch malfunction
- Start stop unit malfunction
|
|
|
