DTC B108C-24; Push Button Start Switch 2 Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Push button start switch 2 circuit malfunction |
| Detection condition |
- Start stop unit detects that the push button start switch 2 is kept in an off condition 5 times or more even though the push button start switch 1 is on.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Push button start connector or terminal malfunction

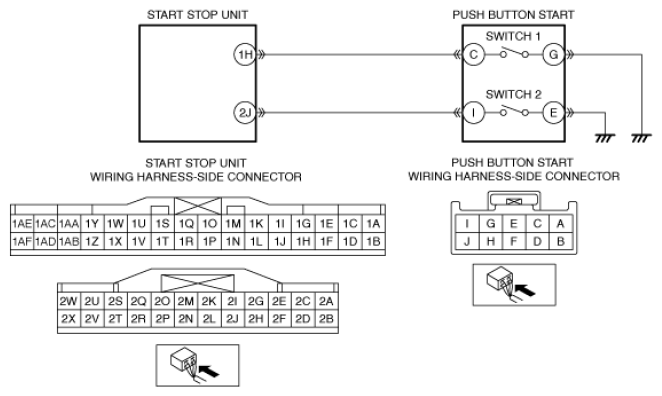

- Open circuit in wiring harness between push button start terminal E and body ground
- Start stop unit connector or terminal malfunction
- Open circuit in wiring harness between start stop unit terminal 2J and push button start terminal I
- Push button start switch 2 malfunction
- Start stop unit malfunction
|
|
|
