With Bose®

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

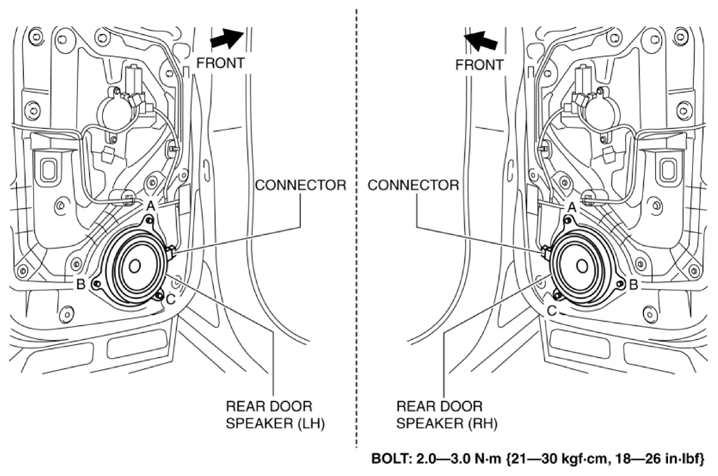

    Fig 1: Disconnecting Connector
    G10939511Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts in alphabetical order.
  5. Pull the rear door speaker in the direction of the arrow shown in the figure and remove it while detaching the pins.

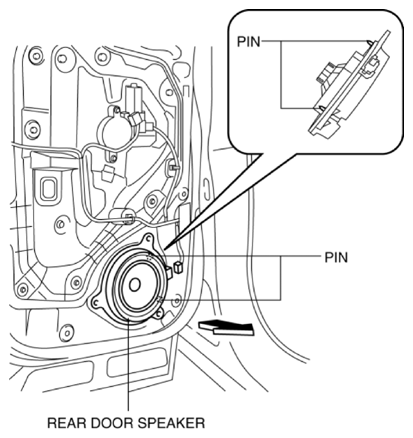

    Fig 2: Pulling Rear Door Speaker
    G10939512Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
