Without Center Display
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Switch the ignition ON (engine off or on).
- Turn the audio unit on.
- Press the TUNE FILE/AUDIO CTRL button of the audio unit to select the [BT SETUP].
- Select [PAIR DEVICE] by operating the TUNE FILE/AUDIO CTRL button of the audio unit, and press the TUNE FILE/AUDIO CTRL button.NOTE:
- If seven Bluetooth devices have been programmed, "MEMORY FULL" is displayed and the pairing programming cannot be performed.
- A maximum of seven Bluetooth-enabled devices can be programmed to one vehicle.
- After "ENTER PIN" is displayed in the audio unit display for approx. 3 s, verify that "PIN 0000 (initial value is 0000)" (4-digit pairing code) is displayed.

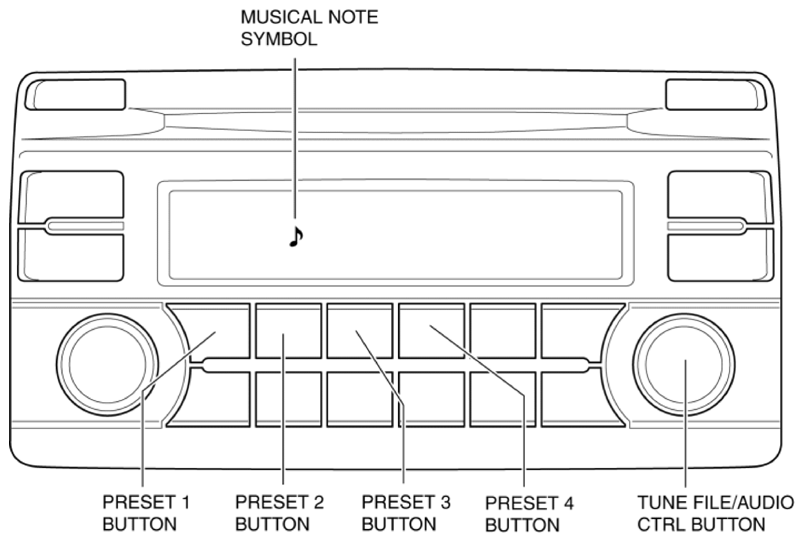

- Input the verified 4-digit pairing code by operating the PRESET 1 button, PRESET 2 button, PRESET 3 button, and PRESET 4 button of the audio unit, and press the POWER/VOLUME button.
- Verify that "PAIRING" flashes in the display of the audio unit.
- Input the same 4-digit pairing code which was input to the audio unit to the Bluetooth ®-enabled device.
- After completing the pairing programming, verify that the "Musical note symbol" is displayed in the audio unit display, and then "PAIR SUCCESS" approx. 3 s afterward.NOTE:
- If the pairing programming fails, "Err" flashes in the audio unit display for approx. 3 s and the screen returns to the [PAIR DEVICE] screen.
