If Bluetooth-Enabled Device Is Version 2.1 And Later

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition ON (engine off or on).
  2. Select "Settings" from the home screen of the center display as shown in the figure.

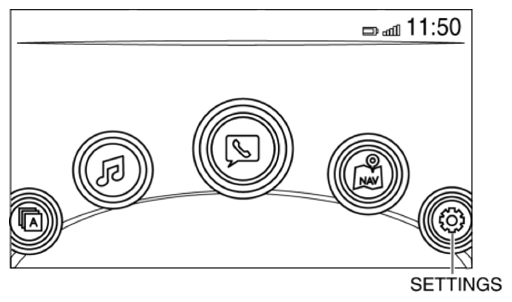

    Fig 1: Selecting Settings From Home Screen Of Center Display
    G10939497Courtesy of MAZDA MOTORS CORP.
  3. Select the following on the center display.
    • [Devices]
    • [Bluetooth]
    • Bluetooth setting ON
    • [Add New Device]
  4. Verify the 6-digit code displayed in the center display and the Bluetooth-enabled device.
    NOTE:
    • When "Add New Device" is selected, the CMU searches for a Bluetooth®- enabled device. If the CMU detects a Bluetooth®-enabled device, a 6-digit code is displayed in the center display.
  5. Select [YES] on the center display.
    NOTE:
    • When "YES" is selected, the CMU initiates the pairing programming with the Bluetooth®-enabled device.
  6. Verify that "Pairing complete Connection complete" is indicated in the center display.
