On-Board Diagnostic Wiring Diagram [Front Body Control Module (FBCM)]

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

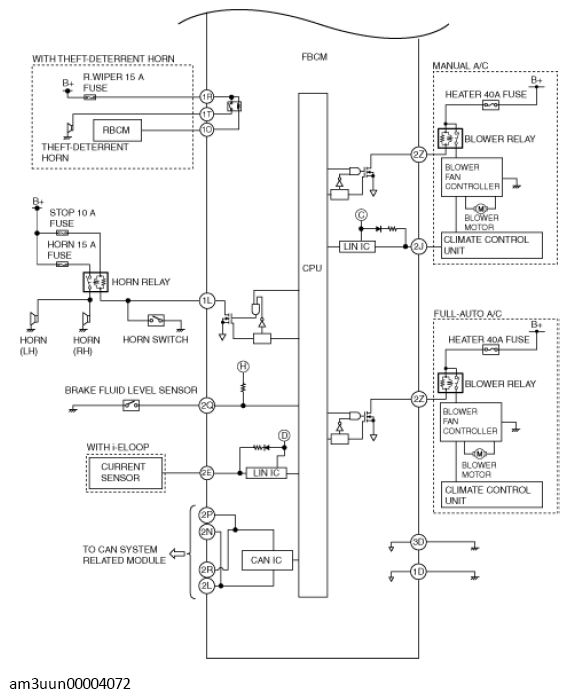

Fig 1: Front Body Control Module-On-Board Diagnostic Wiring Diagram (1 Of 5)

Courtesy of MAZDA MOTORS CORP.

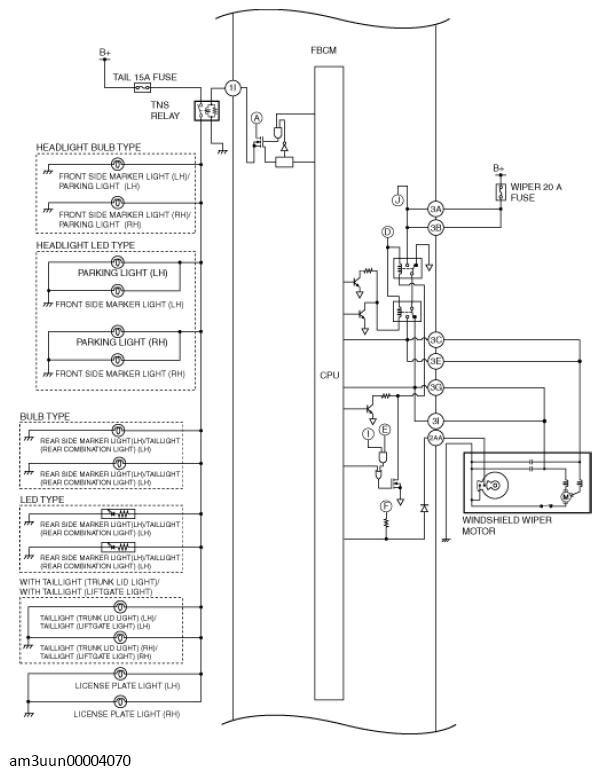

Fig 2: Front Body Control Module-On-Board Diagnostic Wiring Diagram (2 Of 5)

Courtesy of MAZDA MOTORS CORP.

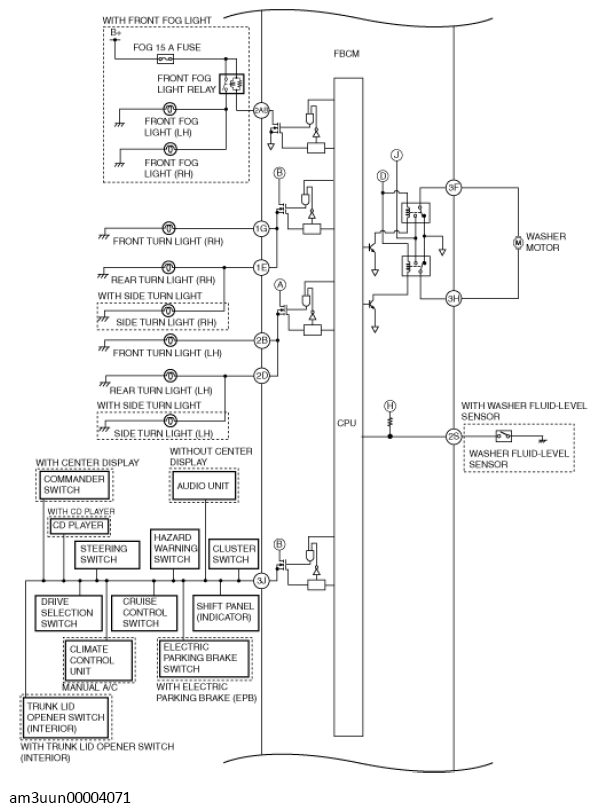

Fig 3: Front Body Control Module-On-Board Diagnostic Wiring Diagram (3 Of 5)

Courtesy of MAZDA MOTORS CORP.

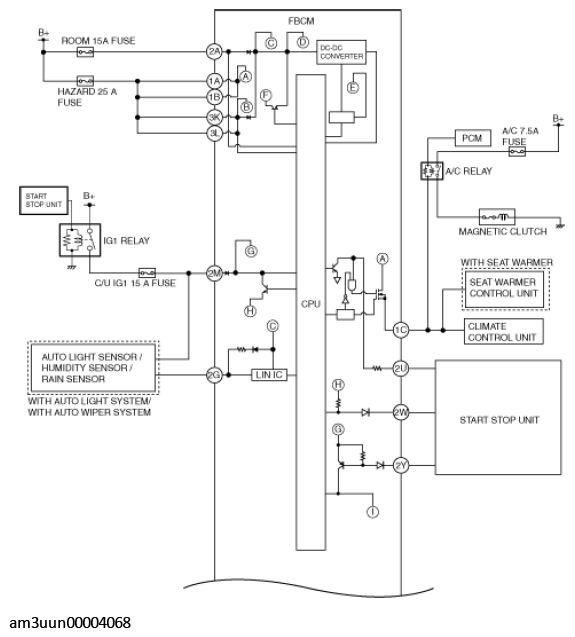

Fig 4: Front Body Control Module-On-Board Diagnostic Wiring Diagram (4 Of 5)

Courtesy of MAZDA MOTORS CORP.

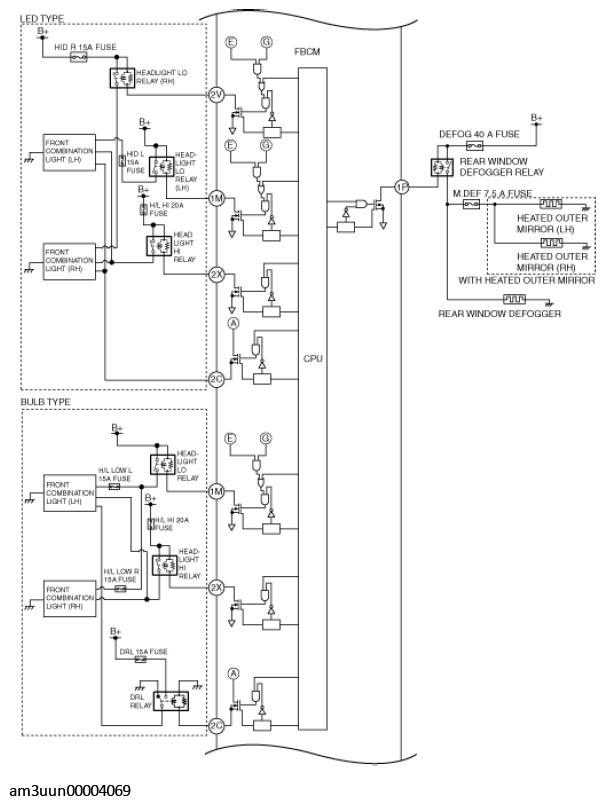

Fig 5: Front Body Control Module-On-Board Diagnostic Wiring Diagram (5 Of 5)

Courtesy of MAZDA MOTORS CORP.
