DTC B109A-14; Headlight Hi Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Headlight HI relay circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects an open circuit or short to ground in the headlight HI relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Headlight HI relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

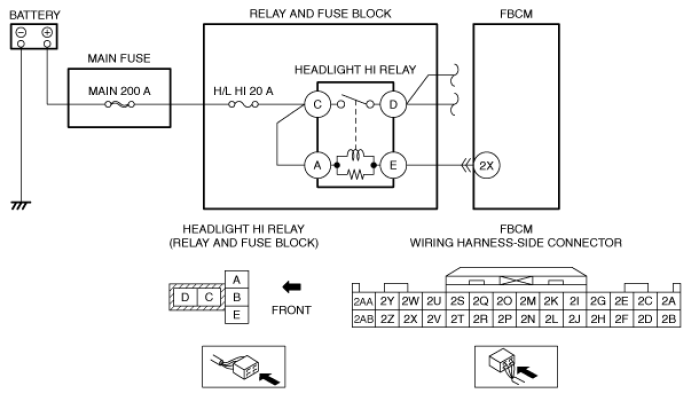

- Short to ground in wiring harness between headlight HI relay terminal E and front body control module (FBCM) terminal 2X
- Open circuit in wiring harness between headlight HI relay terminal E and front body control module (FBCM) terminal 2X
- Front body control module (FBCM) malfunction
|
|
|
