Function Explanation (DTC Detection Outline)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

The PCM detects the pressure of the fuel tank based on the fuel tank pressure sensor signal. The PCM determines a fuel tank pressure sensor signal error based on the condition in which the fuel tank pressure sensor voltage continues to be the specified value or more, and stores a DTC.

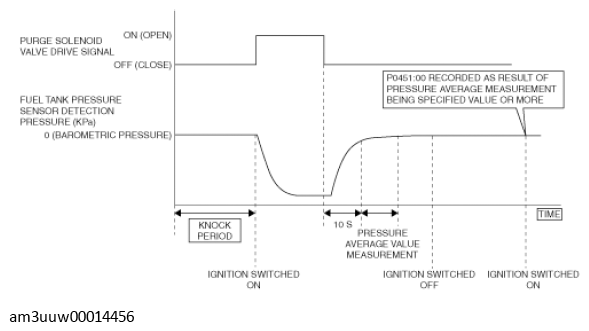

Fig 1: Fuel Tank Pressure Sensor Detection Timing Graph

Courtesy of MAZDA MOTORS CORP.
