DTC U0401-68; Signal Error From Pcm: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC U0401:68 |
Signal error from PCM |
| DETECTION CONDITION |
- When any of the following conditions is met:
- PCM internal malfunction
- CAN communication line between PCM and DC-DC converter malfunction
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- CAN drive error (DC-DC converter or PCM)

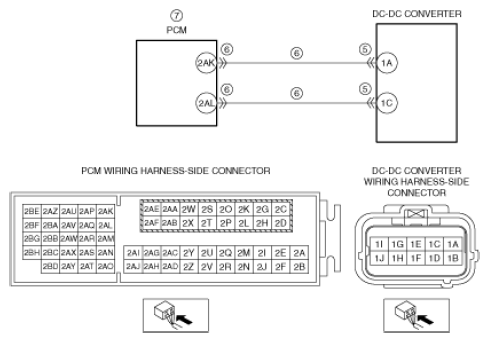

- CAN communication line between PCM and DC-DC converter malfunction
- PCM terminal 2AK-DC-DC converter terminal 1A
- PCM terminal 2AL-DC-DC converter terminal 1C
- DC-DC converter connector or terminals malfunction
- PCM connector or terminals malfunction
- DC-DC converter malfunction
- PCM malfunction
|
|
|
