DTC P0C39; Capacitor Temperature Sensor System Malfunction (I-ELOOP): Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0C39:00 |
Capacitor (i-ELOOP) temperature sensor system: function/circuit malfunction |
| DETECTION CONDITION |
- Any one of the following conditions is met:
- A condition in which the capacitor (i-ELOOP) temperature sensor voltage is less than 0.05 V (less than -50 °C {-58 °F}) continues for 1 s.
- A condition in which the capacitor (i-ELOOP) temperature sensor voltage is 4.95 V or more (90 °C {194 °F} or more) continues for 1 s.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- Capacitor (i-ELOOP) connector or terminals malfunction
- DC-DC converter connector or terminals malfunction

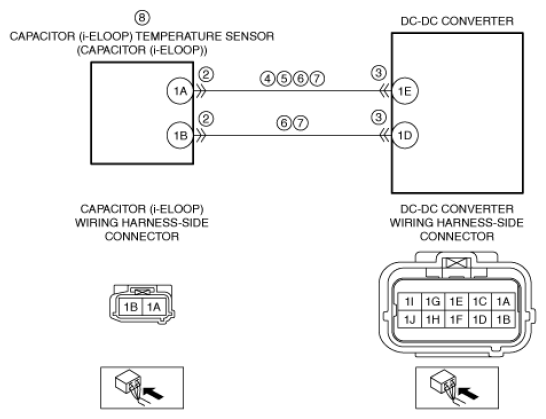

- Short to ground in wiring harness between capacitor (i-ELOOP) terminal 1A and DC-DC converter terminal 1E
- Short to power supply in wiring harness between capacitor (i-ELOOP) terminal 1A and DC-DC converter terminal 1E
- Capacitor (i-ELOOP) temperature sensor signal circuit and ground circuit are shorted to each other
- Open circuit in wiring harness between the following terminals:
- Capacitor (i-ELOOP) terminal 1A-DC-DC converter terminal 1E
- Capacitor (i-ELOOP) terminal 1B-DC-DC converter terminal 1D
- Capacitor (i-ELOOP) temperature sensor malfunction
- DC-DC converter malfunction
|
|
|
