Section 135 (On-Board Diagnostic - Engine Control (4 Of 5))
>>
DTC P0A94-00; Dc-Dc Converter (I-ELOOP): Control Circuit Signal Error
>>
System Wiring Diagram
System Wiring Diagram
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

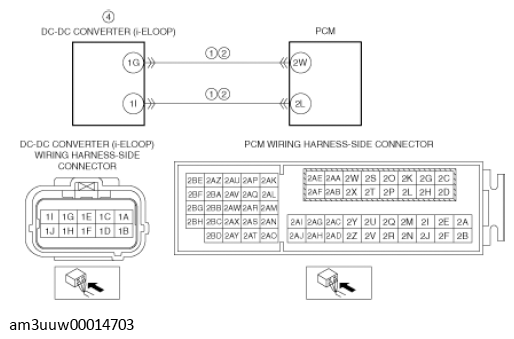

Fig 1: DC-DC Converter (I-Eloop) System Wiring Diagram - Control Circuit Signal Error
Courtesy of MAZDA MOTORS CORP.
