System Wiring Diagram

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

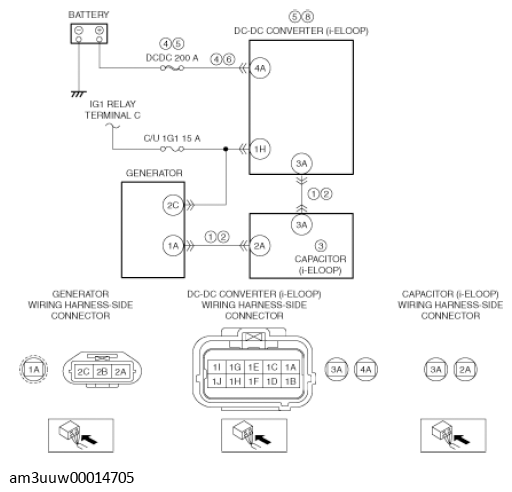

Fig 1: DC-DC Converter (I-Eloop) System Wiring Diagram
G11550334Courtesy of MAZDA MOTORS CORP.
