Center Hinge

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
  2. Remove bolt A.

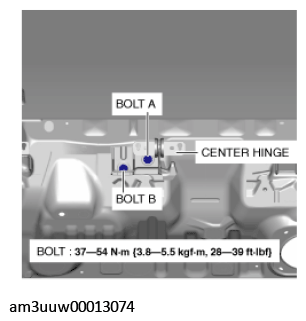

    Fig 1: Center Hinge Bolt A Location
    G11467604Courtesy of MAZDA MOTORS CORP.
  3. Remove bolt B.
  4. Remove the center hinge.

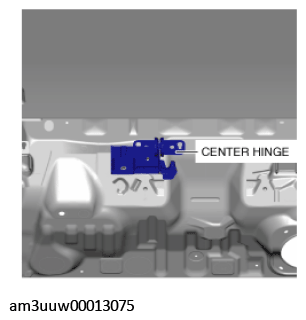

    Fig 2: Center Hinge Bolt B Location
    G11467605Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
